Plant teams that pick the wrong air compressor drain valve usually find out the hard way, through wet air at the point of use or a compressor that runs longer than it should. Condensate collects at the receiver, the air dryer, filters and drop legs, and each spot puts a different demand on the drain. Good condensate management starts with matching the valve type to that demand. Timed, motorized, pneumatic and zero-loss drains each fit a specific situation.

Map Every Air Compressor Drain Valve Location

Each collection point needs its own drain, and the right type depends on how much water reaches it. Compressed air cools as it leaves the compressor, so moisture drops out at the receiver, the moisture separator, filter bowls and low points in the piping.

Saturated air at 100°F carries about 2 gallons of water per hour per 100 CFM, and each air compressor drain valve has to clear its share of that load. List every drain point with its flow, port size, available power and mounting space.

Set a Timed Air Compressor Drain Valve Carefully

The Terminator EDV-115 gives smaller, light-duty systems a low-cost automatic drain valve with a built-in strainer. Its timer opens the valve on a fixed schedule whether water has collected or not, so a long open time wastes air and a short one leaves water behind.

On this air compressor drain valve, techs set the open time from 1 to 60 seconds and the closed time from 1 to 60 minutes. Start with short open times, check for standing water during each air system maintenance round, and adjust in small steps.

Move to Motorized Drains for Dirty Condensate

Sites with heavy, oily or scale-laden condensate get more reliable service from a motorized ball valve such as the Van Air Sentinel Series. A full-port ball valve passes debris that would jam a small solenoid orifice, so the drain keeps working between service intervals. Brass bodies run from ½″ to 3″ NPT and stainless from ½″ to 2″. Pick the MDV-400I for intervals of 30 minutes to 30 hours set on its circuit board, or the MDV-400L for keypad settings and an LCD countdown.

Replace Float Drains That Keep Fouling

Fouled float drains are worth replacing with an electronic zero-loss drain valve such as the Aircel Ultramat UFM-T. Floats collect sludge and can bleed air even when seated, while the UFM-T opens only when condensate is present and closes before compressed air escapes.

Its compact housing accepts condensate from the top or rear for tight spaces, and every model except the T05 has external alarm contacts. Leaking float drains are easy compressed air system efficiency fixes, so replace the worst ones first.

Choose Pneumatic Drains Where Power Isn't Available

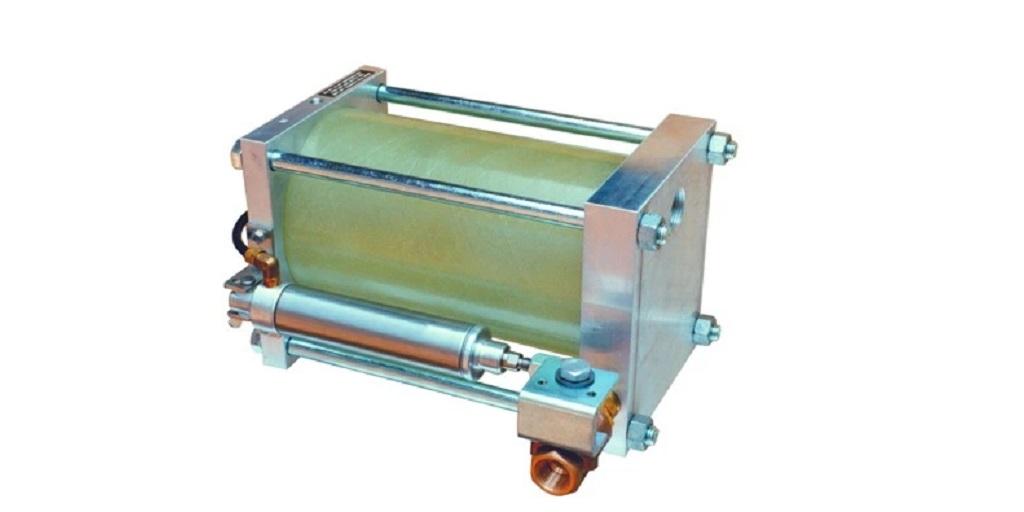

Remote tanks, portable compressors and hazardous areas need a drain that runs without electricity, and the ROBO-Drain RD Series fills that role. System air drives a magnetic pilot valve that opens a full-flow ball valve only when the condensate level calls for it.

A see-through vessel shows the liquid level, and a manual test button comes standard on brass and stainless steel units. Specify the RD for any drain point without power, and order the vacuum or high-pressure version when the application requires it.

Budget Each Air Compressor Drain Valve by Duty

Matching duty to drain point keeps a plant from paying for zero-loss features at a light filter or installing a basic timer drain on a heavy receiver. Spec sheets show the details that separate the options, such as the EDV-115's 300 PSIG rating or the Sentinel's 0°F to 120°F ambient range.

Buying from a supplier that stocks several lines of industrial air compressor parts, such as Air & Vacuum Process, Inc., lets buyers compare drain types side by side. Build the order from the drain point list, one valve type per location.

The right air compressor drain valve depends on condensate volume, power, space and the hazard rating at each drain point. Plants that match those four factors to timed, motorized, pneumatic or zero-loss drains keep water out of the lines and air in the system.
